Cell Chemistry
Cell Configuration
Nominal Capacity(Ah)
Nominal Voltage(V)
Nominal Energy(Wh)
Voltage Range(V)
Cycle Life
LiFePO4 prismatic cell
24S1P
200Ah @0.5C discharge rate
51.2V
15360Wh
60-87.6V
6000 cycles DOD80% 0.2C/0.5C
Standard Charge Current(A)
Max. Charge Current(A)
Charge Condition
0.2C(CC-CV)
200A
@-10℃~55℃
Standard Discharge Current(A)
Max. Continuous Discharge Current(A)
Peak Discharge Current(A)
Discharge Condition
0.5C(Constant current discharging)
200A
500A(≤3S)
@-10~60℃
Safety Function
Communication
Heating System(optional)
Overcharge,over-discharge,over-current and temperature protection
Available upon requirements (UART / RS485 / CANBUS)
Available upon requirements
Size
Weight
Enclosure

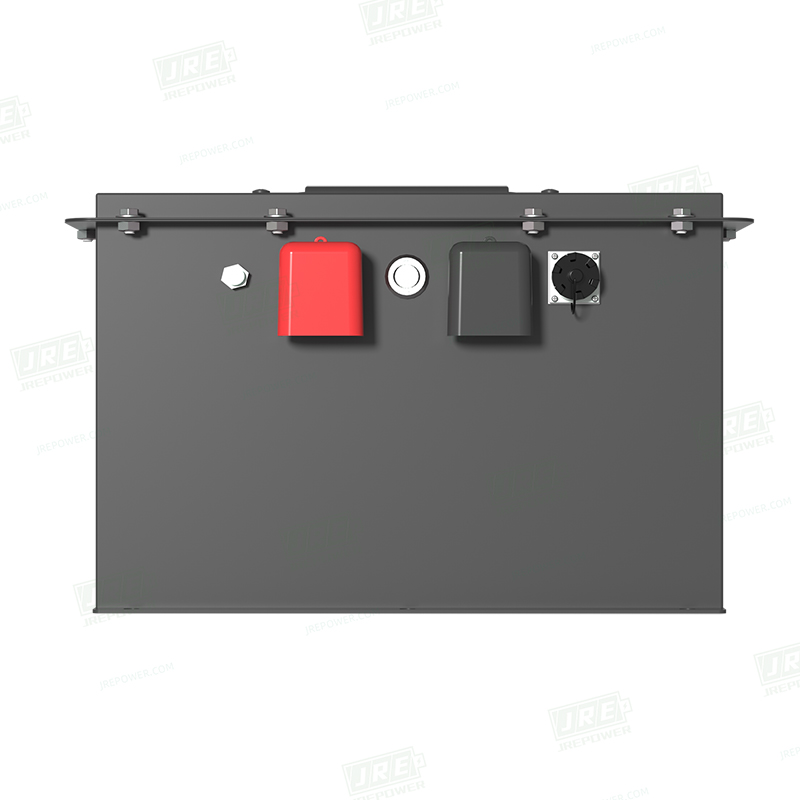

Terminals/Interfaces
750*420*290 mm
29.5*16.5*11.4 in
112.8 ± 5 kg
248.7 ± 11 lbs
Steel Case, IP65
M8 Terminal，Aviation connector
Maintenance
Storage Condition @-20~25℃
Storage Condition @-20~45℃
The battery pack should be fully charged every 3 months.
Can be kept for 3 months at 50% capacity
Can be kept for 1 month at 50% capacity
