REPLACE LEAD-ACID BATTERIES

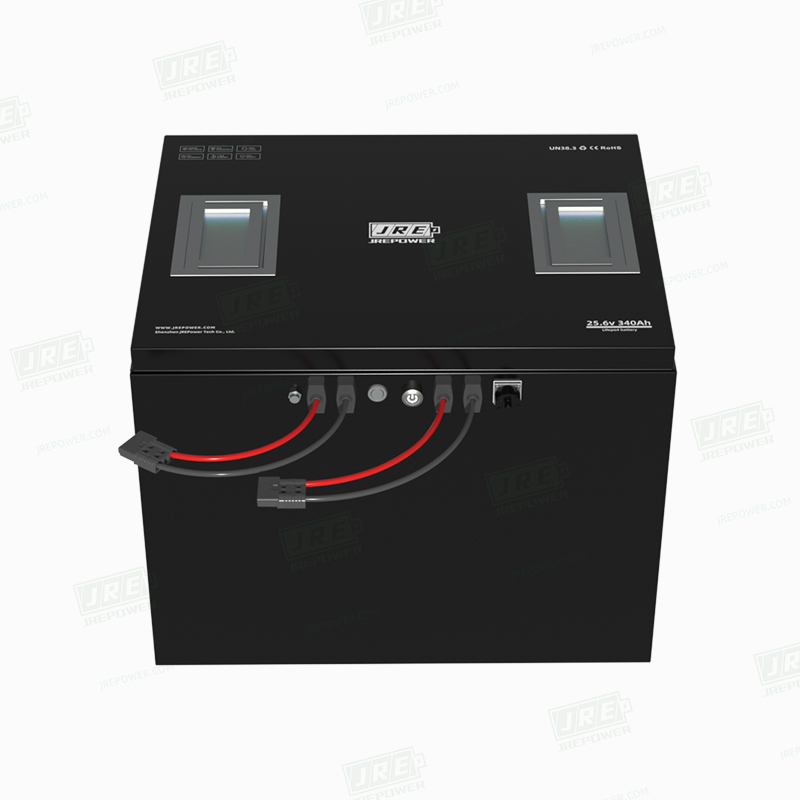

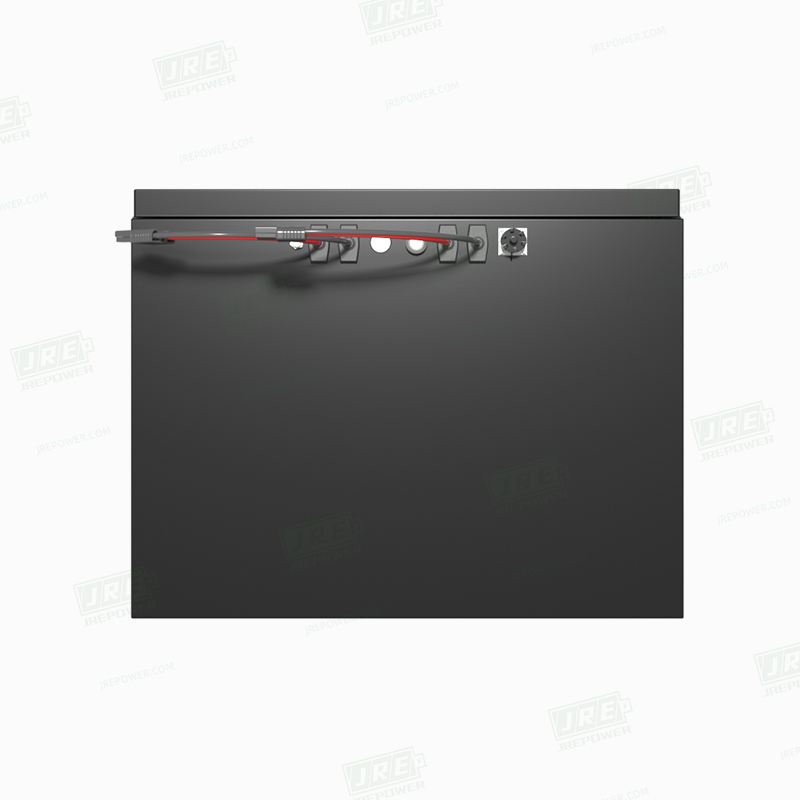

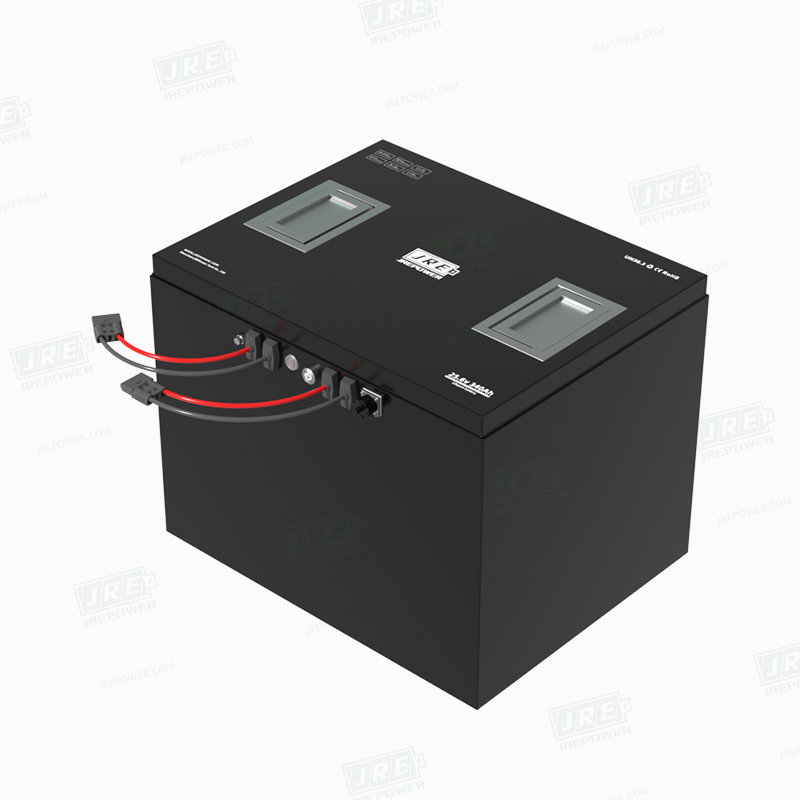

24V 340Ah LIFEPO4 BATTERY

Model NO.

JszT-LF19325CMP

Voltage

25.6V

Capacity

340Ah

Energy

8704Wh

Size

420*330*290 mm
16.54*12.99*11.42 in

Weight

58.6±2 kg
129.19 ±4.41 lbs

Max. Charge Current

200A

Max. Continuous Discharge Current

200A

Cycle Life

6000 cycles
DOD80% 0.2C/0.5C

Technical
Specifications

Model

Cell Chemistry

Cell Configuration

Nominal Capacity(Ah)

Nominal Voltage(V)

Nominal Energy(Wh)

Voltage Range(V)

Cycle Life

JszT-LF19325CMP

LiFePO4 prismatic cell

8S1P

340Ah @0.5C discharge rate

25.6V

8704Wh

20-29.2V

6000 cycles DOD80% 0.2C/0.5C

Charging

Standard Charge Current(A)

Max. Charge Current(A)

Charge Condition

0.2C(CC-CV)

200A

@-10℃~55℃

Discharging

Standard Discharge Current(A)

Max. Continuous Discharge Current(A)

Peak Discharge Current(A)

Discharge Condition

0.5C(Constant current discharging)

200A

-

@-10~60℃

Protection &Function

Safety Function

Communication

Heating System(optional)

Overcharge,over-discharge,over-current and temperature protection

Available upon requirements (UART / RS485 / CANBUS)

Available upon requirements

Appearance And Size

Size

Weight

Enclosure

Terminals/Interfaces

420*330*290 mm
16.54*12.99*11.42 in

Steel Case, IP65

175 Anderson Plug

Maintenance &Storage

Maintenance

Storage Condition @-20~25℃

Storage Condition @-20~45℃

The battery pack should be fully charged every 3 months.

Can be kept for 3 months at 50% capacity

Can be kept for 1 month at 50% capacity
